제품 설명
With high-quality imported components, ensure the new type Micro Hardness Testers working more stable. Protected by the state patent application of the lift & down system, after upgrading, the control system can provide more measuring data, and control more precise. This machine is integrated with optics, mechanics and electricity. It with unbeatable price / performance ratio, widely used in quality inspection and quality control field.
주요 기능 및 특징
1. Main components adopted American 3M, Allegro, and Japanese Omron, NKK brand, ensure the instrument can stable working for a very long time.
2. The independent research and development of lift & down system and positioning system, ensured the accuracy and repeatedly of the testing process.
3. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
4. According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.

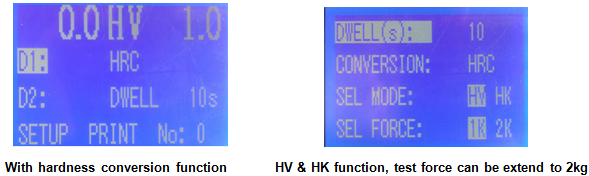

5. With Vickers hardness and Knoop hardness testing capabilities, and testing force can be extended to 2KG (HV2). By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.
6. Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process; The built-in printer can print test number, hardness value, average value, Max. Value, Min. Value, Xmax-Xmin directly, easy for operator to save the data.
7. One-time casting aluminum molding shell ensure structure more stable; Adopted car painting technology, pure white color looking more decent; High scratch resistance capability, used for years still brightness like new.
8. Reserved image channel, can be connected with computer, used the image analysis software to analyzing the physical and chemical properties of the material (for optional purchase).
9. Factory directly supply, we have products develop &design & produce ability, all the parts provide life-time replacement and maintenance service.
주요 적용
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
제품 사양
|
Model |
HVK-1000DT |
HVK-1000ZDT |
|
CE certificate No. : GB/1067/3980/12 Issue 1 |
|
Testing force |
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N),
300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ±1.0% |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2 |
|
HK0.01, HK0.025, HK0.05, HK0.1, HK0.2, HK0.3, HK0.5, HK1, HK2 |
|
Hardness conversion scale |
HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T |
|
Loading speed |
≤50μm/sec |
|
Indenter |
Standard Rectangular pyramid diamond indenter (136º±0.5º) |
|
Min. measuring unit |
0.25μm |
|
Hardness value rang |
1HV-4000HV; 1HK-4000HK |
|
Hardness Value of Reading |
Digital LCD Screen (62x44mm) |
|
Total magnification |
100X (For Observation) , 400X (For Measurement)
(Can be extended to 150X or 600X) |
|
Loading method |
Automatically (Load, dwell and unload the testing force) |
|
Duration time |
1-99s (each step is 1 second) |
|
Turret |
Manual Turret |
Automatic Turret |
|
Objective lens center and indenter center |
Coincidence accuracy error < 1um (objective lens center position can be adjusted) |
|
Maximum height |
85mm |
|
Throat depth |
115mm |
|
Instrument size and Net weight |
490×185×515mm (L×W×H) 43kg |
|
Packing size and Gross weight |
650*450*900mm ( LxWxH) 68kg |
|
Light Source |
LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours) |
|
Power Supply |
220V + 5%, 50/60 Hz (110V is available) |
|
X-Y Testing Table |
Dim.:100×100 mm, Max. Travel Range: 25×25mm,
Moving Resolution Ratio: 0.01mm
(Digital X-Y Testing Table with digital LCD Screen for Optional) |
|
Data Output |
Built-in Printer; Built-in RS-232 interface (transfer data to computer, easy for long time save) |
|
Executed Standard |
GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
|
Standard Accessories |
1 piece:
10X micrometer eyepiece ; 10X and 40X objective lens; Vickers indenter, Knoop Indenter; X-Y Testing Table; Flat fixture; sheet specimen fixture, Small parts fixture; Gradienter; Power line; Dust cover; Manual Book; Hardness Conversion Tables; Certificate of quality; Warranty Card; Accessory case
2 pieces: Vickers hardness block (HV); Knoop hardness block (HK)
4 pieces: horizontal adjusting screw |
|
Optional Purchase Accessories |
Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece |
